Overdrive 2
Overdrive 2 kit $94.99
By now you should know that the overwhelming majority of overdrives on the market today are
Tube Screamer clones or a modified version of a Tube Screamer.  Even some of the "MOSFET"
overdrives are simply modified tubescreamers.  The BYOC Overdrive 2 raises the bar for TS
based boutique overdrives.  It has a 2nd independant boost channel while still easily fitting into a
125b size enclosure to save you precious pedal board real estate.  The PCB was designed with
the builder in mind, so wiring it up and fitting it into the enclosure is a breeze.  The BYOC
Overdrive 2 also comes with parts for all the essential Tube Screamer mods that have proven to
be the favorites of guitar players so you can take tone into your own hands and customize the
overdrive pedal you've been searching for.

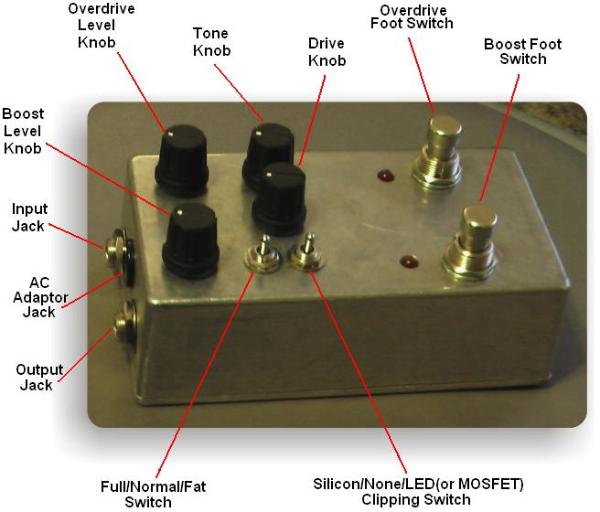

Features:
  • ALL the tubescreamer mods you know and love....and then some.  We've put the
    most popular 2 mods on a switch.  We've added internal trimpots for both the
    "More" and "Less" mods so you can dial those in precisely the way you want.  And
    we've come up with a new mod that increases the overall output and distortion of
    the tube screamer circuit and adds some compression and sag like you'd get from
    a real tube rectifier making the pedal even more tube like.   Or you can just dial
    the pedal in like a stock TS808 if that's what you want.
  • Comes with both the legendary Burr Brown OPA2134 ultra hi-fidelity op amp for
    the ultimate boutique tone AND the classic and equally legendary JRC4558D op
    amp for vintage TS808 tone.  The op amp is socketed, so you decide.
  • A second boost channel that can either be built as a silicon based boost or a
    MOSFET clean boost
  • 3-way clipping switch.  Choose from the very popular silicon-none-LED clipping
    modes or what ever you want to use as a clipping device.
  • 3-way EQ switch.  Choose from stock with midrange hump, full with less midrange
    hump, or fat with lots of bottom end
  • You guys have been asking to put all the jacks on top.  Improved layout that's
    easier than ever to build
  • Compact 125b size enclosure, yet surprisingly easy to operate both the boost and
    bypass footswitches....even for people with big feet.
  • True Bypass
'; document.forms['Form32'].method='post'">
MOSFET Conversion Kit
(sold seperately)
  • MOSFET op amp - Adds a more tubelike feel to the compression and distortion.
  • MOSFET input and output buffers - increased input impedence for a more glassy
    tone.
  • MOSFET clipping - More tubelike distortion.
  • MOSFET boost - A cleaner boost with a touch of sparkle.
  • 10k tone pot - Makes the EQ more natural and transparent , reduces harsh highs
    and noise, and increases the range of the "louder" modification.
'; document.forms['Form36'].method='post'">
Phase Royal
MOSFET Conversion kit $7.99
